Standard roller door assembly
| 1 | Shuter box |
| 2 | Retainer spring |
| 3 | Ball bearing |
| 4 | End cap |
| 5 | Entry guide |
| 6 | Guide rail |
| 7 | PVC plug button |
| 8 | Side lock |
| 9 | Locking flat bar |
| 10 | End slat |
| 11 | Universal cap |
| 12 | Octagano roll tube |
| 13 | Key lock |
| 14 | Stopper |
| 15 | Bearing cap |
| 16 | Distance ring |
| 17 | Roller shutter profile |
Roller shutter functions
Protection and burglar deterring
Protection of the property, windows and shop-windows. Special offer for ALUTECH is burglar-resistant systems
Weather protection
Excellent protection of windows from rain, snow, hail, wind and grit. Flying leaves and objects flown by the wind will not damage your windows.
Energy saving and sun protection
Reduction of heat loss through windows up to 30% in winter, reduction of room heating up to 70% in summer”. Providing comfortable cool atmosphere in hot summer”. Providing comfortable cool atmosphere in hot summer days; protection of curtains, furniture and carpets from colour fading under the influence of sun rays.
Reduction of noise and protection from prying eyes
Reduction of the level of noise for a more efficient work and comfortable leisure. Reliable protection of your private life and complete privacy in your own house.
Aesthetically external appearance
More than 10** years of the day-to-day service thanks to improved strengths characteristics and two-layer paint coating ensuring high resistance to abrasion.

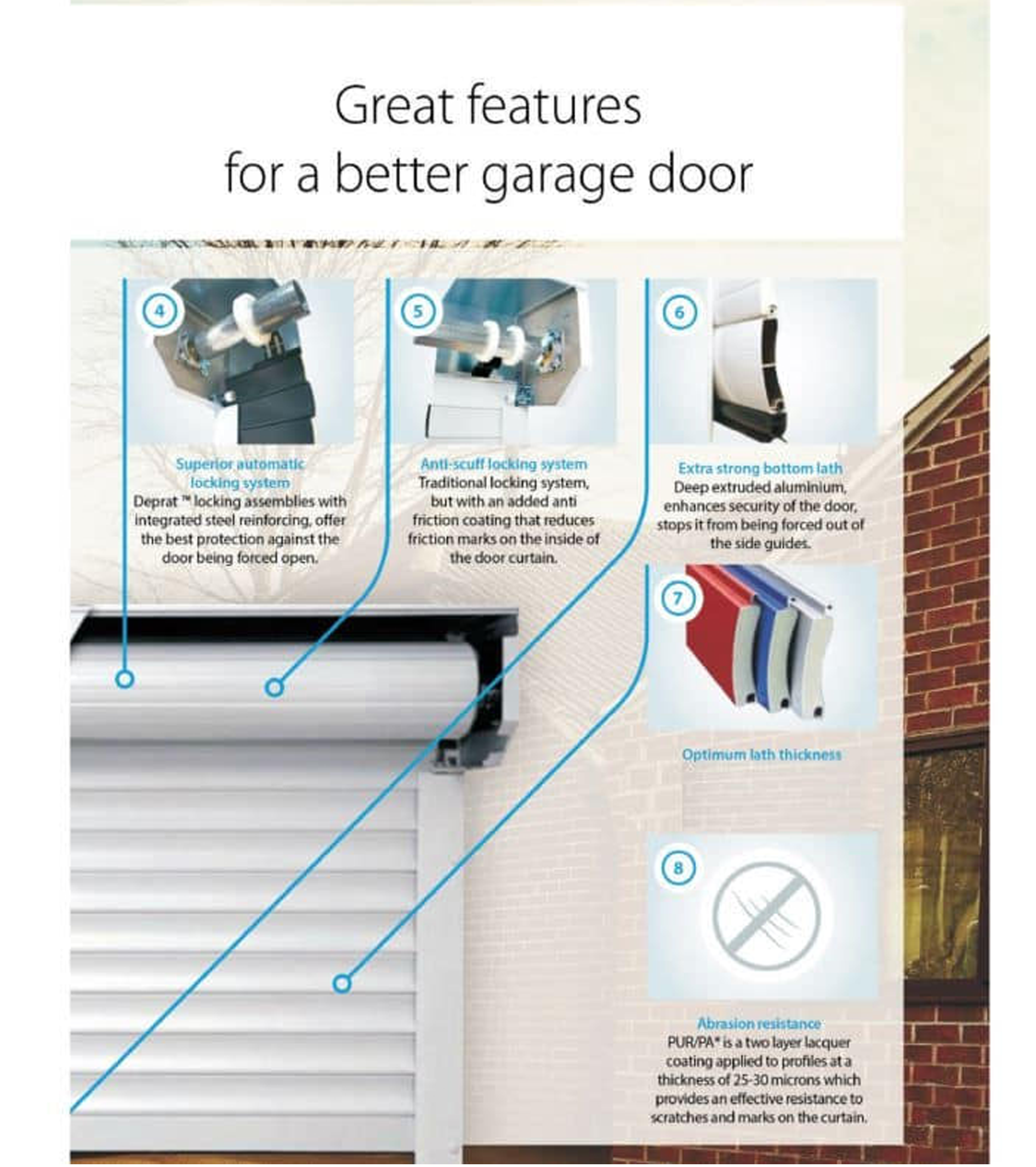

Roller Garage Doors
All the elements of a roller shutter system are tested for compliance with the European quality standards, compatibility of components and reference colour compliance.
The enterprise has certified its Quality Management System in compliance with ISO 9001 in TUV CERT system, as confirmed by the corresponding certificate.
All ALUTECH roller shutter profiles are tested for wind resistance in accordance with EN13659, EN12424 on our in house test wall KS PC (Germany).
A wide range of the profiles makes it possible to install roller shutters in the openings up to 7 m and curtain surface area up to 21 m2 . Roller shutters made of extruded profiles provide increased protection against break-in due to the greater thickness of profile walls and transversal rib.
